F3sg ra safety light curtain safety light curtain with integrated dip switches an ip67 rating and advanced feature configuration the demands of flexible manufacturing require quick line changeovers and frequent reconfiguration of the safety light curtains for new muting or blanking applications.
Requires no external muting controller.
Beam alignment after mounting possible.
Omron declares that the f3sg ra 01ts is in conformity with the requirements of the following ec directives.
24 vdc 20 ripple p p 10 max.
Safety light curtains safety multi light beams single beam safety sensors.
Shares sensor s power supply.
This is the instruction manual describing the use of f3sg r.
4 f3sg ra quick installation manual 5 wiring examples for input output circuit and other examples than below refer to safety light curtain f3sg r series user s manual.
F3sg sr pg series.
F39 gif 1 interface unit for f3sg rr safety light curtain instruction sheet eng jpn instruction manual f39 hga spatter protection cover for model f3sg ra series instruction sheet eng jpn 8500083 1b 1397kb aug 01 2016.
Safety light curtain f3sg ra advanced safety light curtain in rugged ip67 rated housing rugged ip67 rated housing resists washdown space saving slim profile of 35x35 mm 1 37 in scan qr code with smart phone for local language support and troubleshooting guide built in muting.
Always heed the following points when using the f3sg r.
F3sg ra rr series safety light curtain receiver led light color.
Refer to note 1 for the number of sets required for each model f39 lgf.
Workpieces can go in and out of a danger zone without stopping the machine.
Bracket to mount the f3sg ra 01ts.

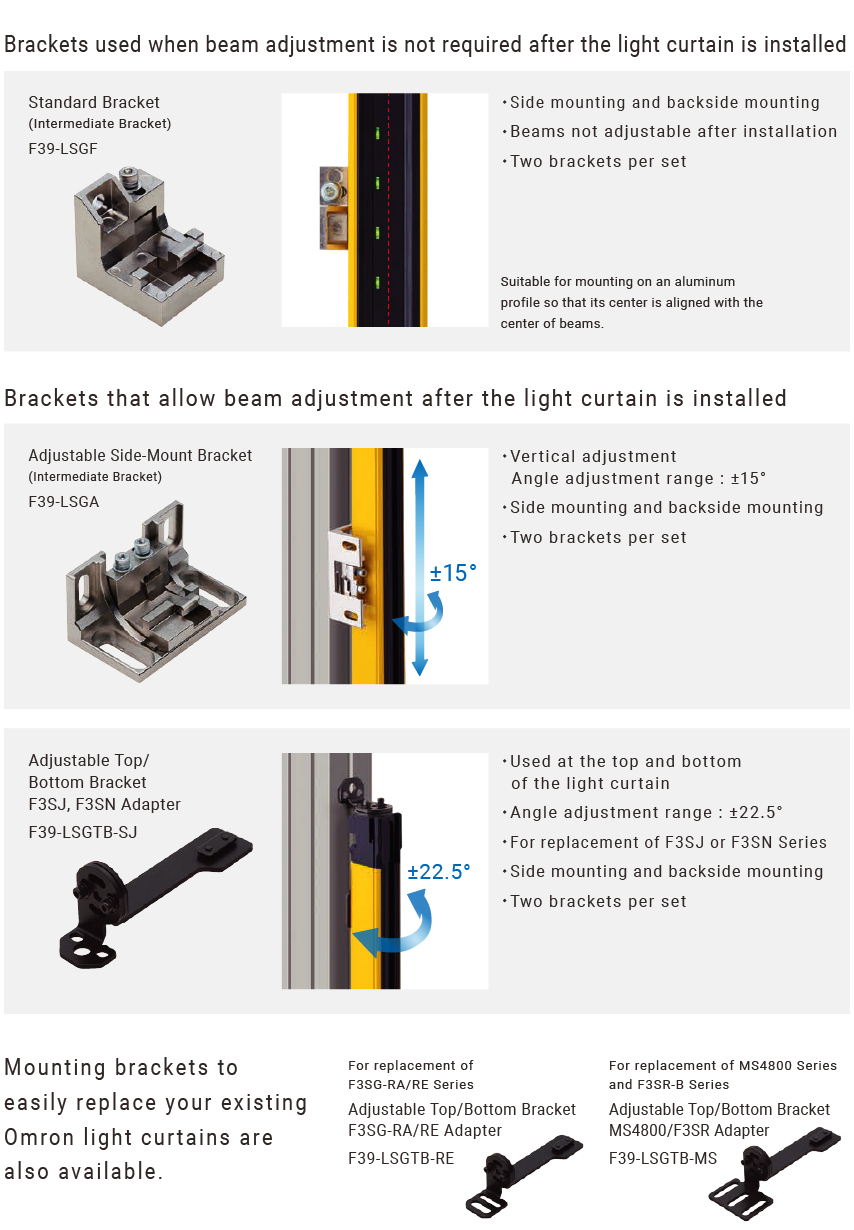

Side mounting and backside mounting possible.
Thank you for purchasing the f3sg r series safety light curtain hereinafter referred to as the f3sg r.
The angle adjustment range is 15.
The f3sg ra is designed to be used in a variety of environments around the world conforming to international standards.
